Flow Meters

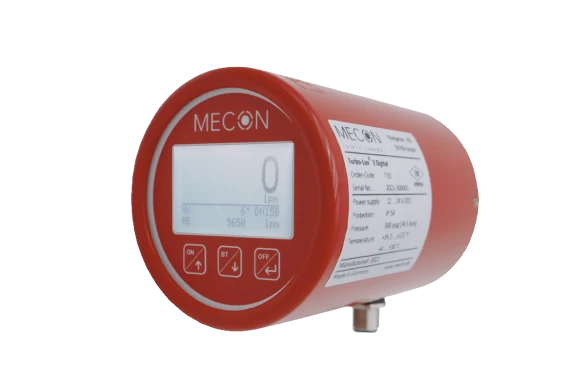

MODEL Turbo-Lux 3 DİJİTAL

Flow Meter Digital (Grooved)

Turbo-Lux 3 Digital model is an advanced flow measurement device used in stationary fire extinguishing systems. It is specifically designed for sprinkler systems and holds international certifications such as FM, LPCB, and VdS. With its digital display and 4-20 mA output signal, it is easy to read and control. This device can be mounted on existing Turbo-Lux 3 measuring orifices, offering high accuracy, durability, and low maintenance requirements. It is adaptable to all orifices ranging from DN 50 (2”) to DN 300 (12”)

Ürünü İncele Arrow Icon
Corner Icon

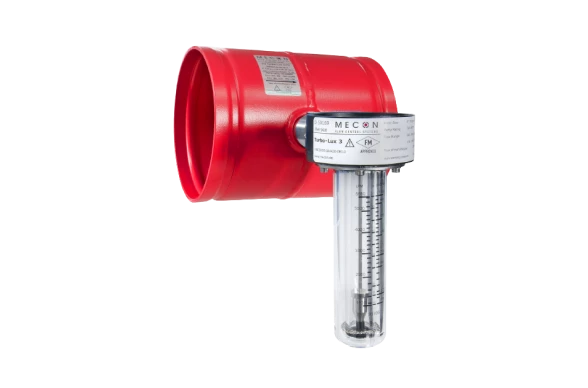

MODEL TURBO-LUX 3

Flow Meter (Grooved)

Turbo-Lux 3 is an orifice flow meter designed for use in fixed fire protection systems. It is commonly employed to measure water volume in closed pipeline systems and extensively utilized in stationary fire suppression systems. Among its advantages are high safety standards, flexible installation options, and a durable, low-maintenance design. It covers nominal sizes ranging from DN 50 (2") to DN 300 (12") and accommodates pump flow rates from 50 to 5,000 USgpm (185 to 19,000 lpm). With its grooved connection, it facilitates easy installation. Approved by three major organizations - FM Global, LPCB, and VdS - the product is engineered for global applicability, offering benefits such as cost-effective installation, maintenance-friendly operation, and precise measurement accuracy.

Ürünü İncele Arrow Icon
Corner Icon

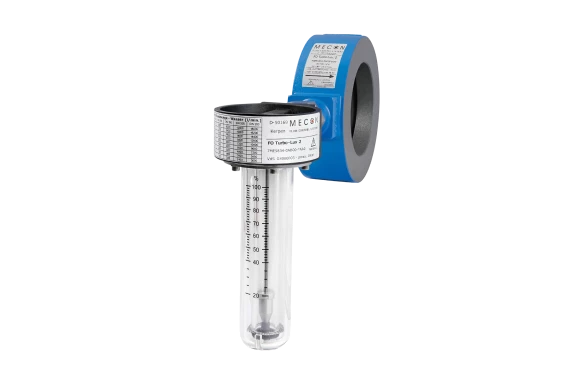

MODEL TURBO-LUX 2

Flow Meter (Between Flange)

Turbo-Lux 2 model from is an advanced orifice flow meter designed for stationary fire extinguishing systems, particularly sprinkler systems. It is VdS certified and available in nominal sizes ranging from DN 80 to DN 250, capable of measuring flow rates between 420 and 18,000 l/min with a measurement accuracy of ±2.5%. The device is highly resistant to vibrations and can be installed in any position or flow direction. It features a digital display showing the flow percentage and is available with optional accessories such as centering kits and calibration certificates. Its durable design ensures reliable performance under challenging fire safety conditions and allows for quick delivery

Ürünü İncele Arrow Icon
Corner Icon

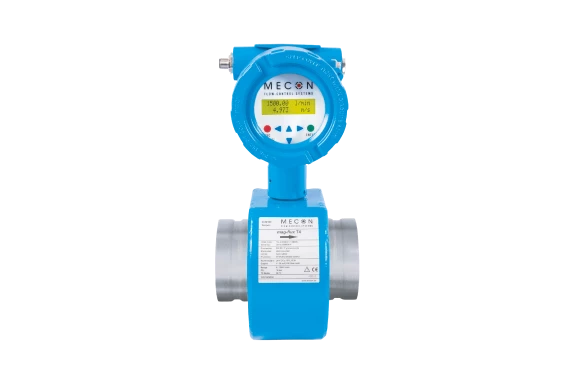

MODEL TURBO-FLUX T4

Magnetic-Inductive Fire Pump Testmeter

The MAG-FLUX T4 is a device that offers high precision (±0.5%) for measuring the flow of electrically conductive liquids. Designed for fixed fire safety applications, it can measure flow rates of up to 10 m/s. With a 4-20 mA output, it can be integrated into remote monitoring systems. VdS approved, it provides flexibility with flange, threaded, or groove connections. Its compact and durable design features a user-friendly M12 connector for simple electrical connections. Technical specifications include nominal sizes from DN 50 to DN 250, operating temperatures from +4 °C to +50 °C, and a maximum pressure limit of 16 bar.

Ürünü İncele Arrow Icon
Corner Icon

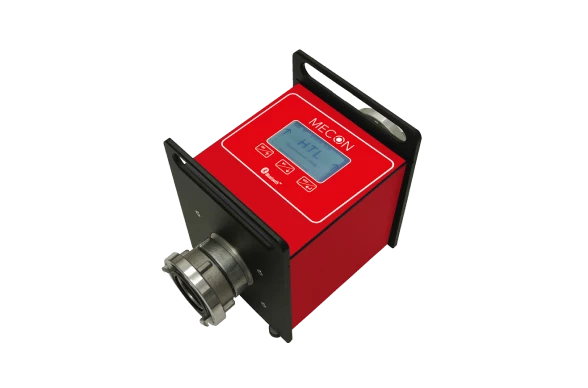

MODEL MAG-FLUX® HTL

Portable Hydrant Tester

Mag-flux® HTL is a portable hydrant testing device designed to measure the flow, pressure, temperature, and optionally turbidity of electrically conductive liquids. Operating based on Faraday's Law of Electromagnetic Induction, this device can accurately measure flow rates ranging from 0.25 m/s to 12 m/s. With its user-friendly interface and Bluetooth connectivity, measurement data can be monitored and managed in real-time through a mobile application. The device is protected with an IP 54 rating, making it resistant to dust and splashes, and it offers long-lasting use with its integrated rechargeable batteries.
