XGQT07

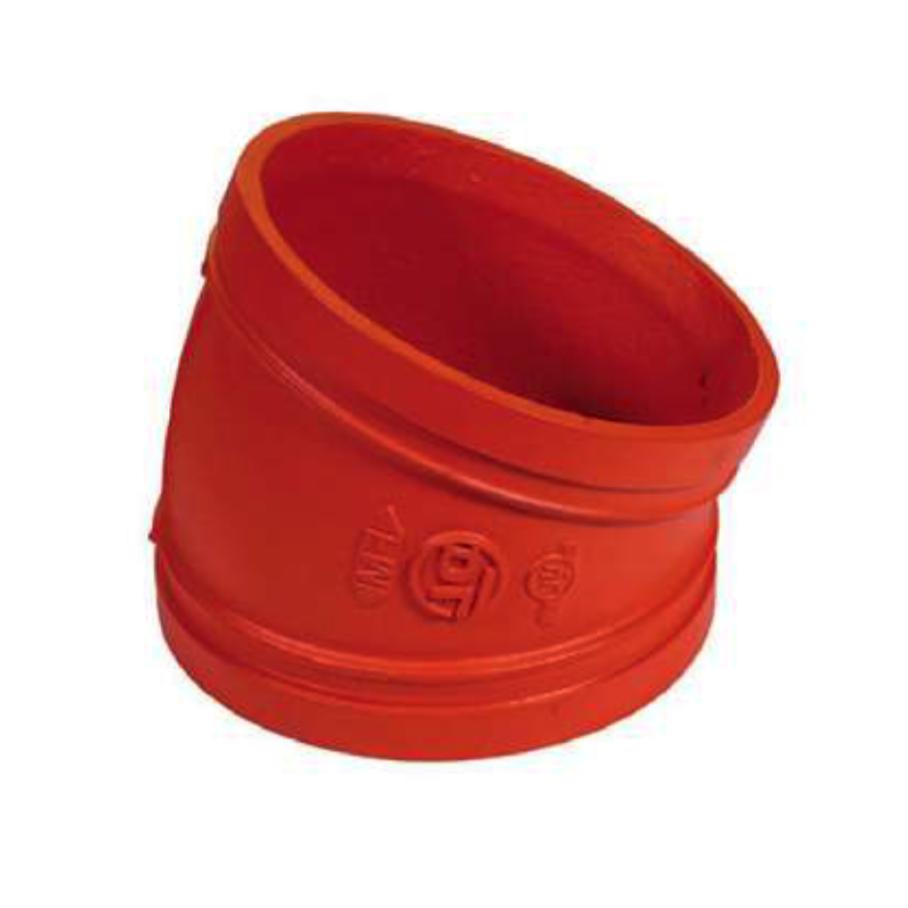

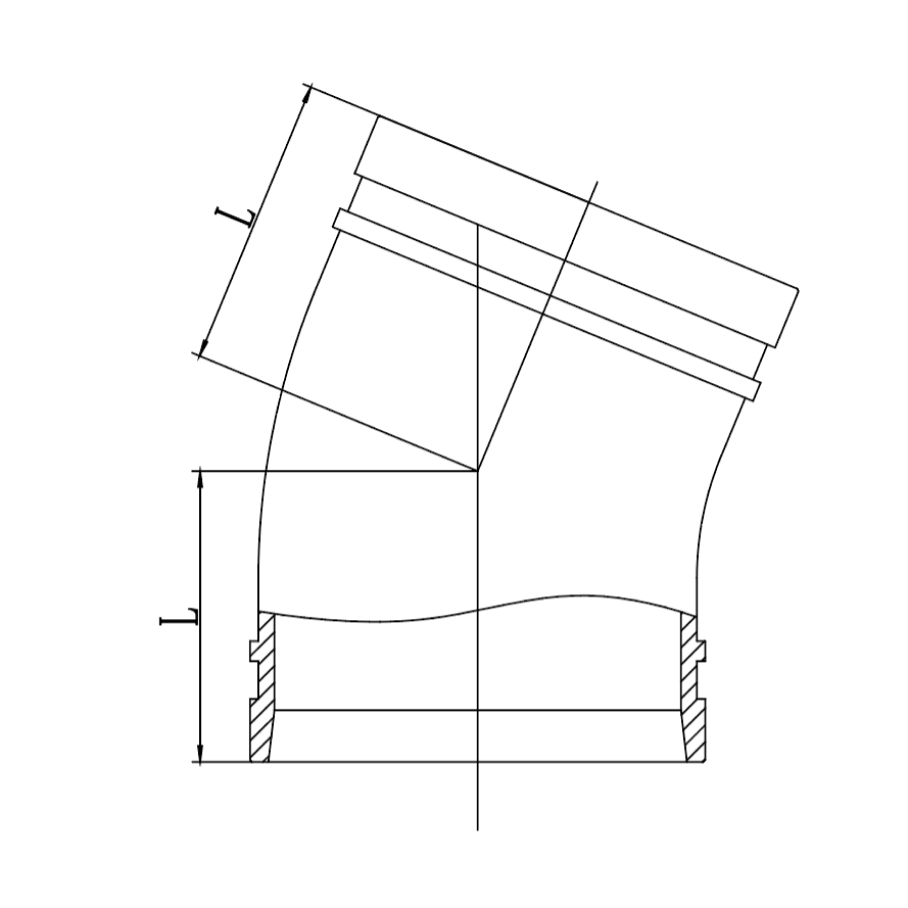

22.5° Grooved Elbow

Coupling and Grooved Fittings

22.5˚ grooved elbow is a fitting designed to change the direction of piping systems by 22.5 degrees, providing flexibility and efficiency in directing pipes within industrial facilities. It ensures secure and leak-proof connections, enhancing the overall reliability and longevity of the system. Grooved pipe systems offer easy assembly and disassembly, allowing for quick and practical installation, minimize the risk of leaks due to high-quality materials, reduce vibrations and noise caused by fluid flow, and have a wide range of applications across various industries. They demonstrate high durability under challenging operating conditions and are long-lasting, offering cost-effectiveness by reducing maintenance and repair costs in the long term. Additionally, their modular design allows systems to be easily customized and expanded according to needs. Grooved connection systems are widely used in the chemical and petrochemical industries, power generation facilities, construction and infrastructure projects, fire suppression water systems, HVAC (Heating, Ventilation, and Air Conditioning) systems, and oil and gas pipelines.

Product Features

Approvals

UL, FM, CE

Working Pressure

300 Psi / 2070 kPa

Surface

Painted / Galvanized

Nominal Size

1" - 12" ( DN25 - DN300 )

Documents
