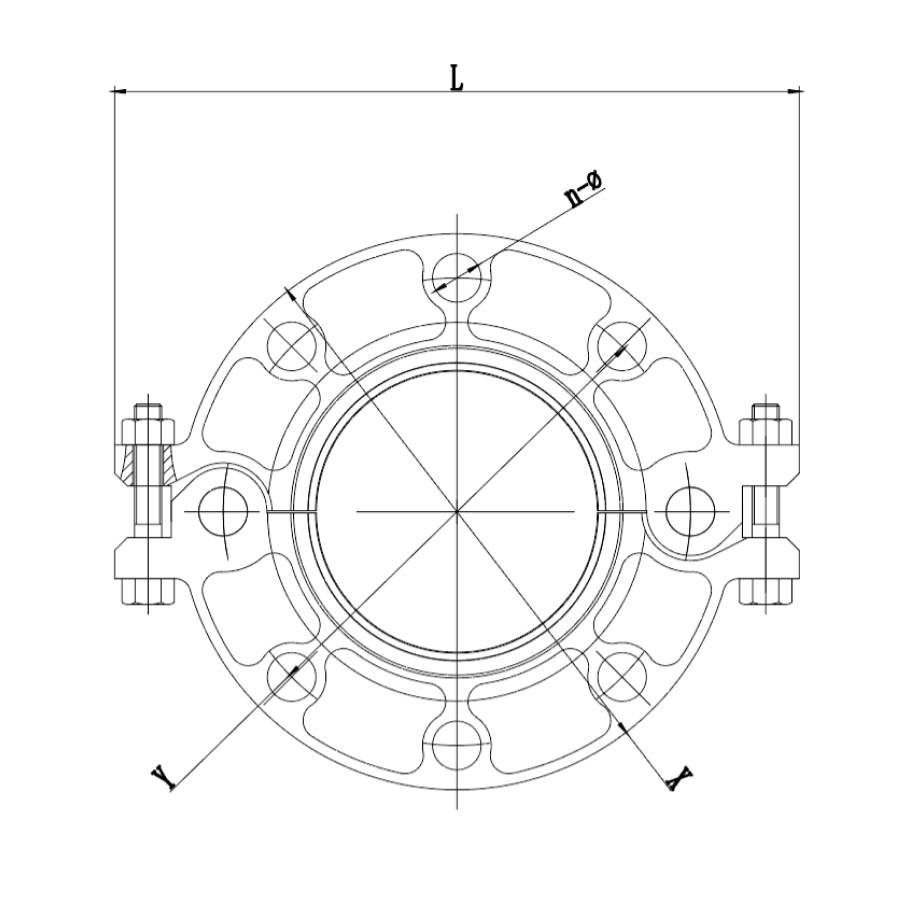

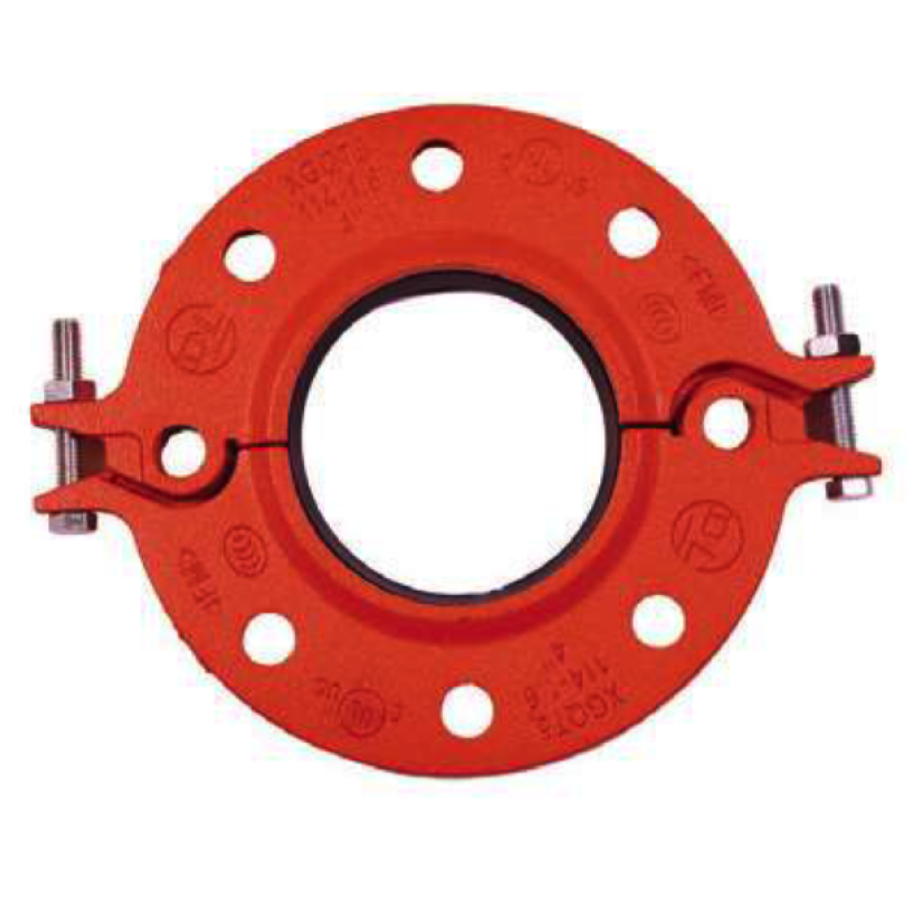

MODEL XGQT5

Grooved Flange

Coupling and Grooved Fittings

Grooved flange is a fitting used to create connection points in piping systems and to join different equipment. The various advantages of grooved piping systems include quick installation, low cost, and flexibility. These flanges enhance the security and leak-proof nature of the system, ensuring overall reliability and longevity. Grooved connection systems are widely used in the chemical and petrochemical industries, power generation facilities, construction and infrastructure projects, fire suppression water systems, HVAC (Heating, Ventilation, and Air Conditioning) systems, and oil and gas pipelines.

Product Features

Approvals

UL, FM, CE

Working Pressure

300 Psi / 2070 kPa

Surface

Painted / Galvanized

Nominal Size

2" - 12" ( DN50 - DN300 )

Documents
