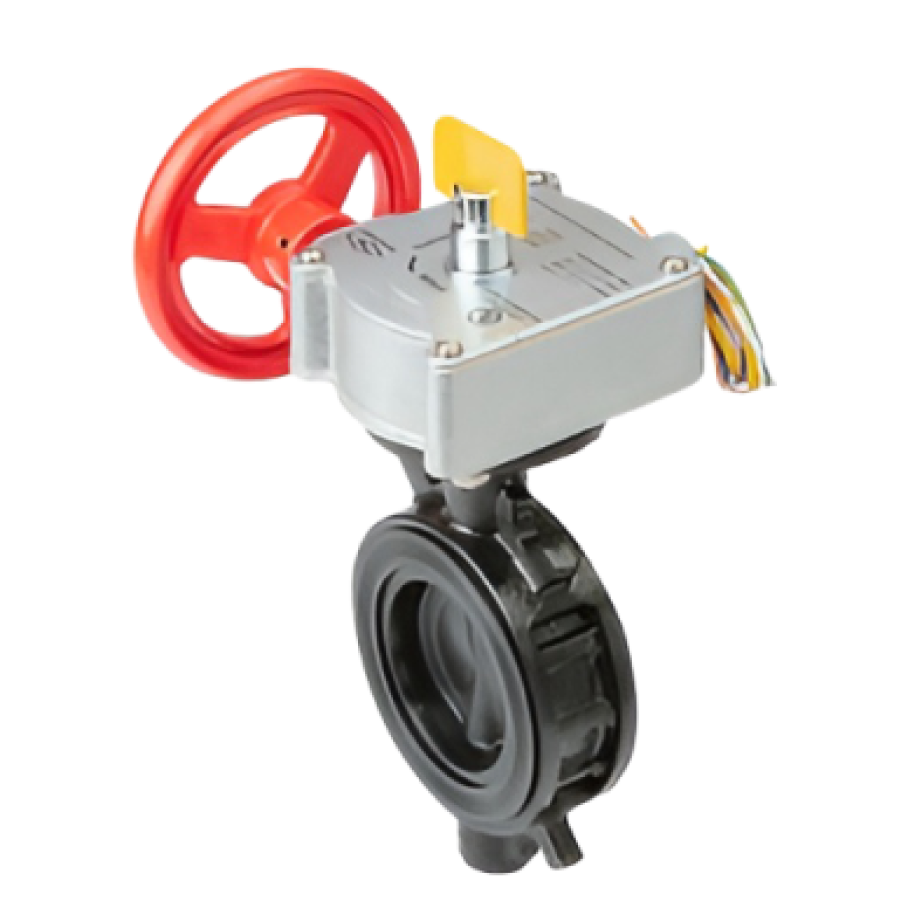

Butterfly Valve wıth Supervisory Switch

System Valves

Butterfly Valve wıth Supervisory Switch is a regional control valve used as a shut-off or control valve on water supply lines. It is used to separate zones within indoor areas. The positions of valves in fire systems must be visible and electrically monitored. These valves feature a gear-operated handwheel, with a monitoring switch inside the valve and an open/closed position indicator.

Product Features

Approvals

UL, FM, TSE

Dimensions

1 1/4" - 8" ( DN32 - DN200 )

Working Pressure

175 PSI or 300 PSI

Connection

Grooved, Flanged and Threaded

Documents
