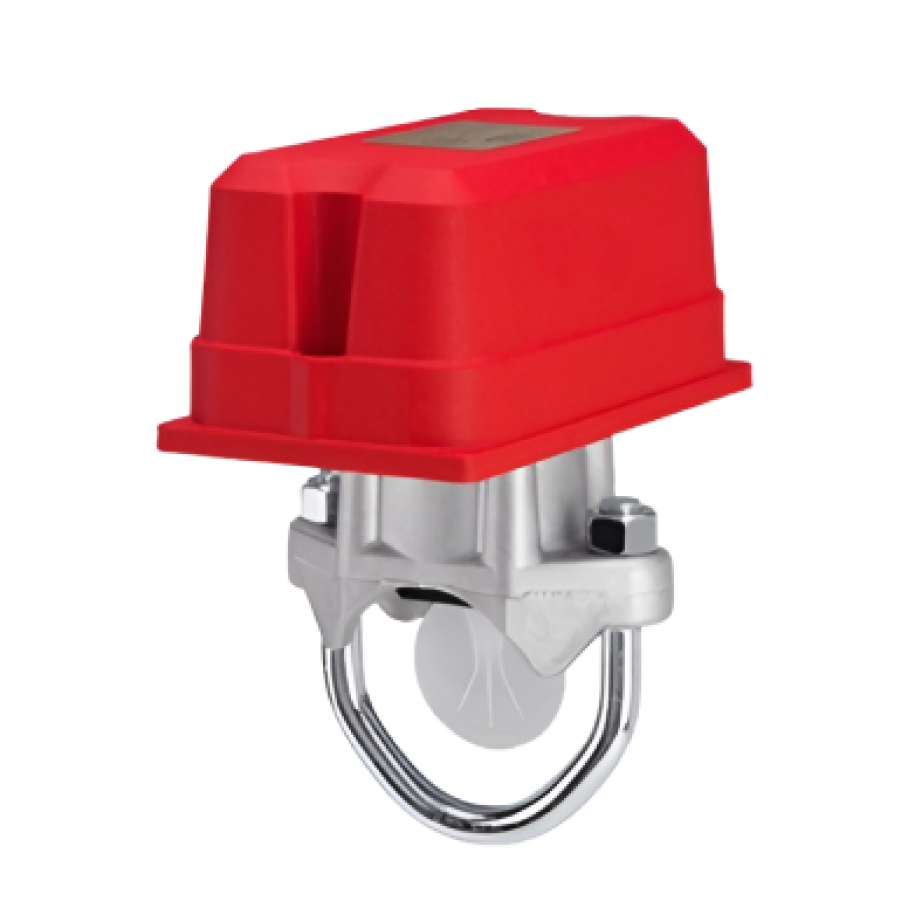

Flow Switch

System Valves

Flow switches play a critical role in fire detection and suppression systems. These devices detect water flow between 4 and 10 GMP, sending information to the fire control panel and activating the pump. Typically pedal-operated, flow switches are used exclusively in wet pipe systems and can be mounted with threaded fittings or U bolts. They operate at pressures of 400-450 PSI and temperatures between 0 and 49°C. By detecting water flow, flow switches ensure the system functions correctly, although they are limited to wet pipe systems only.

Product Features

Approvals

UL, FM, TSE

Dimensions

2" - 8" ( DN50 - DN200 )

Working Pressure

175 PSI or 300 PSI

Connection

U Bolt or Threaded

Documents
